Step3
There's still some noise at about 780 Hertz
therefore we can take a bandgap-filter to reduce this noise

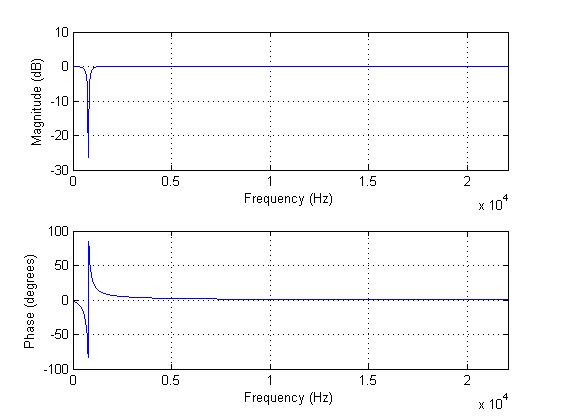

diagram of the bandgap-filter:
After the signal passed the bandgap-filter, it lookes like that:

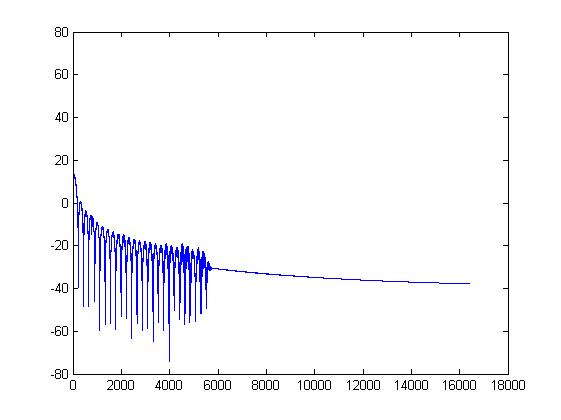

And here the result of the fft:
go on with step 4...
